Reflex - reflective safety

  • Category: Sleeving
  • Brand: Techflex

Reflects On-Axis Light 360° Up To 675'

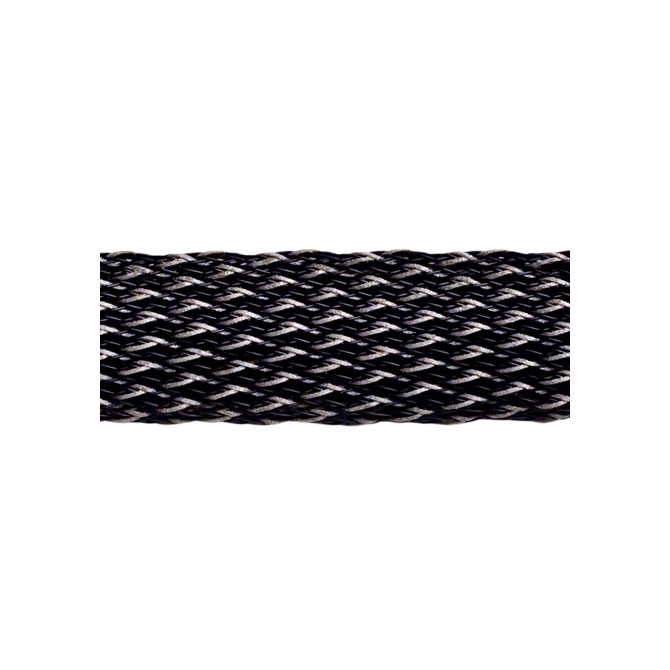

Flexo Reflex is our polyethylene terepthalate material braided together with highly reflective 3M Scotchlite retroreflective monofilament. This unique combination provides a high level of wire and cable protection with the added advantage of extraordinary 360 degree, on-axis reflectivity.

RF is up to 1,500 times brighter than plain white under identical conditions and will provide high visibility safety on wires, hoses, cables, bicycle and motorcycle cables, stage wiring and virtually anything else up to 675’ away.

 Reflective even under low light conditions. Patent pending.
9RF0610,9RF0620,9RF0710,9RF0810,9RF0820,9RF0910,9RF0920

9RF0610,9RF0620,9RF0710,9RF0810,9RF0820,9RF0910,9RF0920

Physical Properties

Monofilament Thickness (ASTM D-204)

.010

Flammability Rating



Recommended Cutting

Hot Knife

Colors

2

Wall Thickness

.026

Tensile Strength - Yarn (ASTM D-2265) lbs.



Abrasion Resistance

Low

Specific Gravity

1.38

Moisture Absorption % (ASTM D-570)

.1 - .2

Operating Temperatures

Minimum Continuous

-22°F/-30°C

Maximum Continuous (MIL-I-23053)

257°F/125°C

Melt (ASTM D-2117)

446°F/230°C

Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected

Aromatic Solvents

2

Alipahtic Solvents

1

Chlorinated Solvents

3

Weak Bases

1

Strong Bases

2

Salt Water (O-S-1926)

1

Hydraulic Fluid (MIL-H-5606)

1

Lubricating Oil (MIL-A-8243)

1

De-Icing Fluid (MIL-A-8243)

1

Strong Acids

3

Strong Oxidants

2

Esters/Ketones

1

UV Light

1

Petroleum

1

Fungus (ASTM G-21)

1

Salts

1



Other Information

Halogen Free

Yes

RoHS

Yes

UL/CSA

No

RoHs logo



Nominal
Size

Product
Part #

Expansion Range

Standard Spool Put-Ups

Colors

Lbs/
100'

Min.

Max.

Bulk Spool

Shop Spool

1/8"
1/4"
1/2"
3/4"

RFN0.13CL
RFN0.25
RFN0.50
RFN0.75

1/16"
3/16"
1/4"
3/8"

1/4"
3/8"
1"
1 3/8"

1,000'
1,000'
500'
250'

100'
100'
100'
75'

CL
2
2
2

0.29
0.33
0.52
0.63
