A2 - Clear Flexible, 2:1 Ratio - Spooled

  • Category: Heat Shrink Tubing
  • Brand: Sumitomo

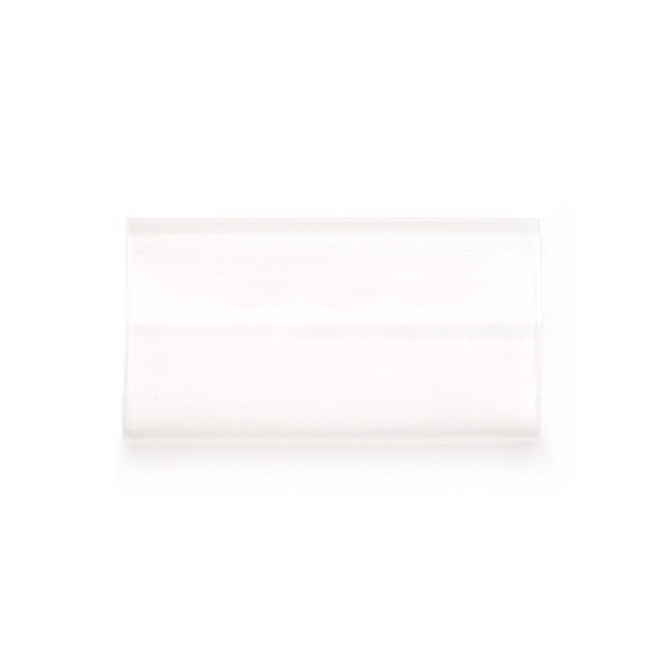

Clear Flexible Polyolefin, 2 to 1 Ratio, for colors see product B2.

SUMITUBE A2 is a flexible, clear polyolefin heat-shrinkable tubing which meets all of the material and functional requirements of Military Specification AMS-DTL-23053/5C, Class 2. A2 is recommended for general purpose applications such as electrical insulation or light weight harness jacketing, where visual inspection of the substrate is desirable. For 3:1 shrink version see A2(3X).

Download A2.pdf data sheet.

Click here if you would like to have your order custom cut to a specific length.

 5130120,5130220,5130320,5130420,5130520,5130620,5130720,5130820,5130920,5131020,5131120,5131220,5131420,5131520,5131620,5131720

  1. SUMITUBE A2 is a flexible, clear polyolefin heat - shrinkable tubing which meets all of the material and functional requirements of Military Specification AMS- DTL-23053/5C,Class 2

  2. Shrink temperature is 110°C.

  3. Operating temperature range is -55°C to +135°C and up to 200°C for short time durations.

  4. A2 is recommended for general purpose applications such as electrical insulation or light weight harness jacketing, where visual inspection of the substrate is desirable. For 3:1 shrink version see A2(3X) data sheet.



PROPERTY (UNITS)



TEST METHOD



REQUIREMENT



Physical:

Tensile strength (psi) Elongation (%) Specific gravity

Low temperature flex (-55o C) Heat shock (250o C, 4 hrs.)

Heat resistance (175o C, 168 hrs.) Elongation (%)

Secant modulus (psi) Longitudinal change (%)



 ASTM D638

ASTM D638

ASTM D792

AMS-DTL-23053

AMS-DTL-23053





ASTM D638

ASTM D882

AMS-DTL-23053



 1500 min.

200 min,

1.00 max. no cracking no cracking





100 min.

25 x 104 max.

+5



Electrical:

Dielectric strength (volts/mil) Volume resistivity (ohm-cm)



 ASTM D876

ASTM D876



 500 min.

1.0 X 1014 min.



Chemical:

Corrosion (175o C, 16 hrs.) Water absorption (%)

Fluid resistance (23o C, 24 hrs.) Tensile strength (psi) Flammability

Shrink temperature, nominal



 AMS-DTL-23053

ASTM D570



AMS-DTL- 23053



 no corrosion

0.2 max.



1000 min.

N/A

110o C



Specification reference:            AMS-DTL-23053/5C, Class 2



STANDARD       SIZES





SIZE



INSIDE DIAMETER AS SUPPLIED (MIN)

INCH              (MM)



INSIDE DIAMETER AFTER RECOVERY (MAX)

INCH              (MM)



WALL THICKNESS AFTER RECOVERY (NOM)

INCH              (MM)

3/64

.046                   1.2

.023                   0.6

.016                  0.40

1/16

.063                   1.6

.031                   0.8

.017                  0.43

3/32

.093                   2.4

.046                   1.2

.020                  0.51

1/8

.125                   3.2

.062                   1.6

.020                  0.51

3/16

.187                   4.8

.093                   2.4

.020                  0.51

1/4

.250                   6.4

.125                   3.2

.025                  0.64

3/8

.375                   9.5

.187                   4.8

.025                  0.64

1/2

.500                  12.7

.250                   6.4

.025                  0.64

3/4

.750                  19.1

.375                   9.5

.030                  0.76

1

1.000                 25.4

.500                  12.7

.035                  0.89

1 1/4*

1.250                 31.8

.625                  15.9

.038                  0.97

1 1/2

1.500                 38.1

.750                  19.1

.040                  1.02

2

2.000                 50.8

1.000                 25.4

.045                  1.14

3

3.000                 76.2

1.500                 38.1

.050                  1.27

4

4.000                101.6

2.000                 50.8

.055                  1.40

Standard Colors:   Clear only

Standard Package:  Spooled (S) or 4 foot lengths (4')

How to Order:   (Type of material)      (Size)       (Color)       (Packaging)

Example:             A2                    1/4          Clear               S

* non - SAE spec size
