Flexo Wrap - hook and loop

  • Category: Sleeving
  • Brand: Techflex

Flexible Control & Management with Easy On, Easy Off Access

FLEXO WRAP (FW) is an exclusive product engineered and manufactured by Techflex. FW provides the perfect solution to a wide variety of unique application challenges.

The color matched hook and loop closure provides for easy on and off installation, as well as instant and convenient access for harness break-outs and rework of any specific section along the entire length of the run. Combined with the expandable, open weave design, FW will conform to a wide variety of bundle diameters and will wrap around irregular shapes.

All grades of FW cut cleanly with a hot knife.

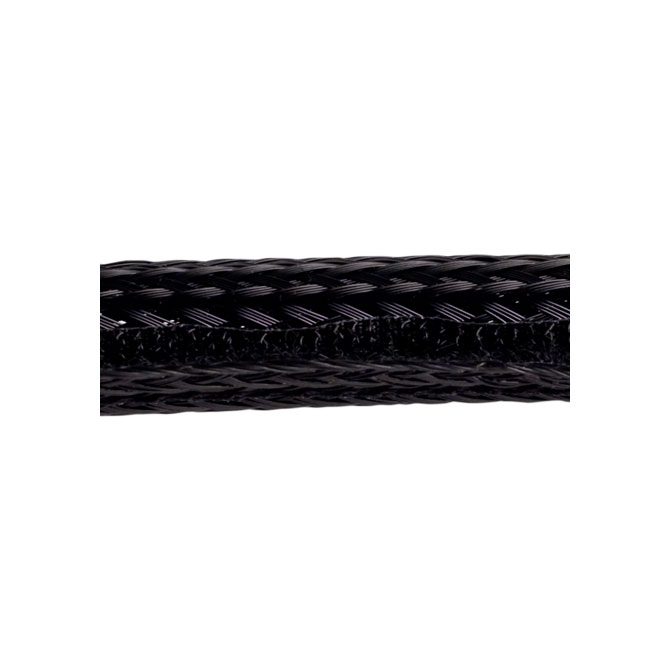

Flexo wrap
FLEXO WRAP is designed for quick and easy management of wire, cable and hose assemblies. Just separate the hook and loop fasteners along the edge of the material....
Flexo wrap
and slip the entire length of FW around or under your harness or component assembly. The wide expandability range allows FW to easily fit around...
Flexo wrap
odd-shaped connectors and gently constrict around the diameter of your wires. When the FW is in place, simply seal the hook and loop along the edges. F9f6 9f60410, 9f60610, 9f60810, 9f60910, 9f61010, 9f61110, 9f61210, 9f61210, 9f61410



Physical Properties

Monofilament Thickness (ASTM D-204)

.010

Flammability Rating



Recommended Cutting

Hot Knife

Colors

4

Wall Thickness

.025

Tensile Strength - Yarn (ASTM D-2265) lbs.

7.5

Abrasion Resistance

Medium

Specific Gravity

1.38

Moisture Absorption % (ASTM D-570)

.1 - .2

Hard Vacuum Data (ASTM E-595 at 10-5 torr)

TML

.19

CVCM

.00

WVR

.16

Smoke D-Max (ASTM E-662)

56

Outgassing

Medium

Oxygen Index (ASTM D-2863)

21

Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected

Aromatic Solvents

2

Alipahtic Solvents

1

Chlorinated Solvents

3

Weak Bases

1

Strong Bases

2

Salt Water (O-S-1926)

1

Hydraulic Fluid (MIL-H-5606)

1

Lubricating Oil (MIL-A-8243)

1

De-Icing Fluid (MIL-A-8243)

1

Strong Acids

3

Strong Oxidants

2

Esters/Ketones

1

UV Light

1

Petroleum

1

Fungus (ASTM G-21)

1

Salts

1



Operating Temperatures

Minimum Continuous

-94°F/-70°C

Maximum Continuous (MIL-I-23053)

257°F/125°C

Melt (ASTM D-2117)

482°F/250°C

Other Information

Halogen Free

Yes

RoHS

Yes

SVHC

None

UL/CSA

Yes









Nominal
Size		 Product
Part #		 Hook & Loop
Width		 Standard Spool
Put-Ups		 Colors Lbs/
100'
Bulk Shop
1/2"
3/4"
1 1/4"
2"
2 1/2"		 FWN0.50
FWN0.75
FWN1.25
FWN2.00
FXN2.50BK		 1/4"
5/8"
5/8"
5/8"
5/8"		 100'
100'
100'
100'
100'		 20'
15'
12'
10'
10'		 4
4
4
4
BK		 1.30
1.80
2.30
3.20
3.7
