Flame Retardant

  • Category: Sleeving
  • Brand: Techflex

Flame Retardant, Economical Sleeving Solution

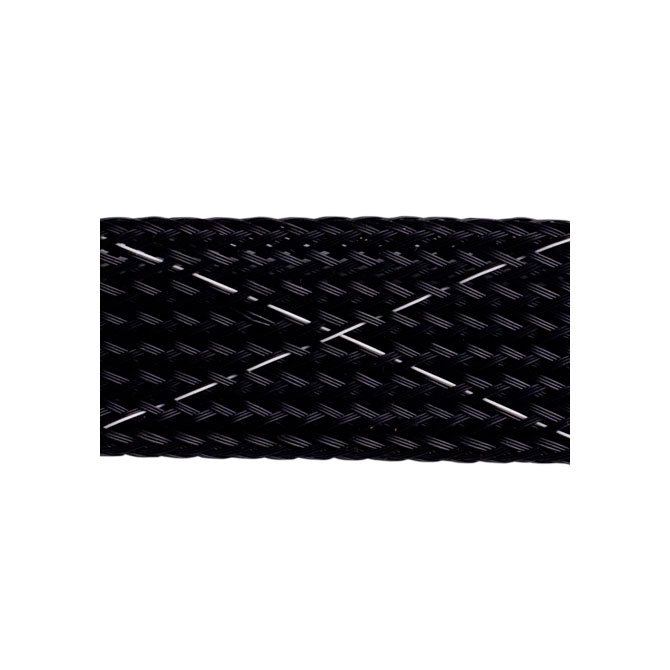

Flexo PET Flame Retardant sleeving is the perfect choice for electronic and high tech applications where flame retardance and durability are primary concerns. Ease of installation makes FR an efficient choice for long runs of wire or cable.

The addition of an organic combustion inhibitor to our standard polyethylene terepthalate gives FR an Underwriters Lab and CSA flame resistance rating of VW-1.

9FR0410,9FR0419,9FR0610,9FR0619,9FR0710,9FR0719,9FR0810,9FR0819,9FR0910,9FR0919,9FR1110,9FR1119,9FR1310,9FR1319,9FR1410,9FR1419,9FR1810,9FR1819



Physical Properties
Monofilament Thickness (ASTM D-204) .010
Flammability Rating VW-1
Recommended Cutting Hot Knife
Colors 7
Wall Thickness .025
Tensile Strength - Yarn (ASTM D-2265) lbs. 5
Abrasion Resistance Medium
Specific Gravity 1.38
Moisture Absorption % (ASTM D-570) .1 - .2
Hard Vacuum Data (ASTM E-595 at 10-5 torr)
TML .19
CVCM .04
WVR .06
Smoke D-Max (ASTM E-662) 275
Outgassing Medium
Oxygen Index (ASTM D-2863) 31
Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected
Aromatic Solvents 2
Alipahtic Solvents 1
Chlorinated Solvents 3
Weak Bases 1
Strong Bases 2
Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1
Lubricating Oil (MIL-A-8243) 1
De-Icing Fluid (MIL-A-8243) 1
Strong Acids 3
Strong Oxidants 2
Esters/Ketones 2
UV Light 1
Petroleum 1
Fungus (ASTM G-21) 1
Salts 1
Operating Temperatures
Minimum Continuous -94°F/-70°C
Maximum Continuous (MIL-I-23053) 257°F/125°C
Melt (ASTM D-2117) 482°F/250°C
Other Information
Halogen Free Yes
RoHS Yes
UL/CSA Yes
SVHC None
RoHs logo UL CSAFAR 25 ABYCVW-1

Nom.
Size		 Product
Part #		 Expansion
Range		 Standard Spool
Put-Ups		 Colors Lbs/
100'
Min. Max. Bulk Shop
1/8"
1/4"
3/8"
1/2"
3/4"
1"
1 1/4"
1 1/2"
1 3/4"
2"
2 1/2"
3"		 FRN0.13
FRN0.25
FRN0.38
FRN0.50
FRN0.75
FRN1.00
FRN1.25
FRN1.50
FRN1.75
FRN2.00
FRN2.50
FRN3.00		 3/32"
1/8"
3/16"
1/4"
1/2"
5/8"
3/4"
1"
1 1/4"
1 1/2"
1 3/4"
2 1/2"		 1/4"
7/16"
1/2"
3/4"
1 1/4"
1 5/8"
1 3/4"
2 1/8"
2 3/4"
3 1/2"
3 5/8"
4 3/4"		 1,000'
1,000'
500'
500'
250'
250'
250'
200'
200'
200'
200'
100'		 225'
200'
125'
100'
75'
65'
50'
40'
30'
50'
50'
50'		 7
7
7
7
7
7
7
7
7
7
7
7		 0.16
0.24
0.57
0.72
1.07
1.34
1.60
1.96
2.70
3.30
3.80
4.00
3 End Const.
1/4" FR30.25TB 1/8" 3/8" 1,000' 200' 3* 0.39
