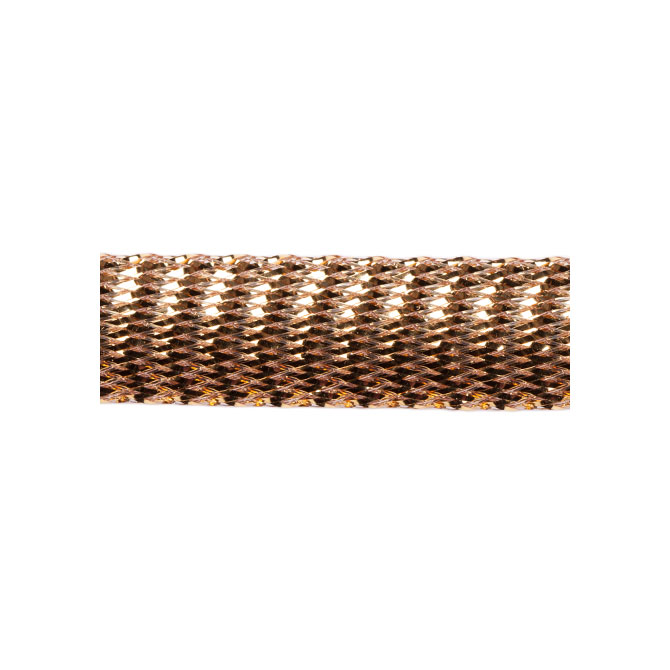

Mylar PET

  • Category: Sleeving
  • Brand: Techflex

Lightweight, Economical Metallic Alternative

When your needs don’t call for the durability or toughness of our Chrome or Chrome XC sleeving, Mylar sleeving is an ideal, economical alternative. MY is perfect for cosmetic applications and a wide variety of installation methods create dramatic results.

Audiophile cable builders often use MY under other sleeving types to create a unique, custom visual effect. Applications that combine MY with a more robust sleeving will withstand abrasion and general use and still have the custom, “Wow!” effect cable fabricators are looking for.

Braided from thin metallic Mylar strips along with transparent PET monofilament, MY creates a sparkling, highly reflective effect. MY can be used instead of Mylar sheets to wrap and bundle cables.  9PT2GL,9PT2SL,9PT3GL,9PT3SL



Physical Properties
Monofilament Thickness (ASTM D-204) .010
Flammability Rating
Recommended Cutting Hot Knife
Colors 3
Wall Thickness .025
Tensile Strength - Yarn (ASTM D-2265) lbs.
Abrasion Resistance Very Low
Specific Gravity 1.3
Moisture Absorption % (ASTM D-570) .1 - .2
Hard Vacuum Data (ASTM E-595 at 10-5 torr)
TML .19
CVCM .00
WVR .16
Smoke D-Max (ASTM E-662) NA
Outgassing Medium
Oxygen Index (ASTM D-2863) 21
Chemical Resistance

1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected
Aromatic Solvents 2
Alipahtic Solvents 1
Chlorinated Solvents 3
Weak Bases 1
Strong Bases 3
Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1
Lubricating Oil (MIL-A-8243) 1
De-Icing Fluid (MIL-A-8243) 1
Strong Acids 3
Strong Oxidants 2
Esters/Ketones 1
UV Light 1
Petroleum 1
Fungus (ASTM G-21) 1
Salts 1
Operating Temperatures
Minimum Continuous -94°F/-70°C
Maximum Continuous (MIL-I-23053) 257°F/125°C
Melt (ASTM D-2117) 482°F/250°C
Other Information
Halogen Free Yes
RoHS Yes
UL/CSA No
SVHC None

RoHs logo

Nominal
Size

Product
Part #

Expansion Range

Standard Spool Put-Ups

Colors

Lbs/
100'

Min.

Max.

Bulk Spool

Shop Spool

1/4"
1/2"
3/4"

MYN0.25
MYN0.50
MYN0.75

1/8"
1/4"
5/8"

7/16"
1"
1 3/4"

1,000'
500'
250'

200'
100'
75'

2
2
2

0.17
0.35
0.52
