Split Braid

  • Category: Sleeving
  • Brand: Techflex

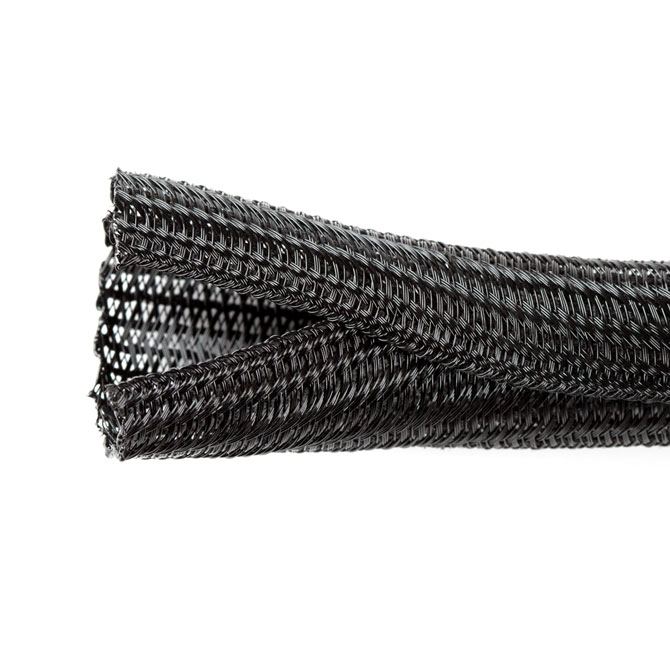

Flexible, Semi-Rigid Wrappable Split Braided Tube

F6’s unique split, semi-rigid braided construction makes it the ideal solution for situations where ease of installation is of primary importance.

The lateral split allows the tube to open up to accommodate a wide variety of bundling requirements, and the semi-rigid braid configuration simply closes around the entire installation without the need for any additional fasteners (velcro, tape, etc.)

The 10 mil PET braid is lightweight, quiet and flexible. The 25% edge overlap (at nominal diameter) allows coverage around inline plugs, connectors and splices.

F6 will bend to a tight radius without distorting or splitting open and, unlike full rigid tubing, will not impair or affect the flexibility of harnesses. F6 allows for the addition or removal of wires without disassembly.

As easy as installing F6 is, we've made it even easier to cover long lengths of wire or cables quickly and economically. See our exclusive F6 installation tools in related products below.

Download split braid.pdf data sheet.

9F60410,9F60610,9F60710,9F60810,9F60910,9F61010,9F6101025FT,9F61110,9F61210,9F6121025FT,9F61410,9F60425,9F60625,9F60725,9F60825,9F60925,9F61025,9F61125,9F61225,9F61425



Physical Properties   Hard Vacuum Data (ASTM E-595 at 10-5 torr)
Monofilament Thickness (ASTM D-204) .008 - 015   TML .19
Flammability Rating UL-94   CVCM .00
Recommended Cutting Hot Knife   WVR .16
Colors 4   Smoke D-Max (ASTM E-662) 56
Wall Thickness .024 - .038   Outgassing Medium
Tensile Strength - Yarn (ASTM D-2265) lbs. 6 - 10   Oxygen Index (ASTM D-2863) 21
Abrasion Resistance Medium   Operating Temperatures
Specific Gravity 1.38   Minimum Continuous -94°F/-70°C
Moisture Absorption % (ASTM D-570) .1 - .2   Maximum Continuous (MIL-I-23053) 257°F/125°C
      Melt (ASTM D-2117) 482°F/250°C

Chemical Resistance       1=No Effect   2=Little Effect   3=Affected   4=More Affected   5=Severely Affected
Aromatic Solvents 2   Alipahtic Solvents 1
Chlorinated Solvents 3   Weak Bases 1
Strong Bases 2   Salt Water (O-S-1926) 1
Hydraulic Fluid (MIL-H-5606) 1   Lubricating Oil (MIL-A-8243) 1
De-Icing Fluid (MIL-A-8243) 1   Strong Acids 3
Strong Oxidants 2   Esters/Keytones 1
UV Light 1   Petroleum 1
Fungus (ASTM G-21) 1   Salts 1

Halogen Free Yes   RoHS Yes
SVHC None   UL/CSA Yes


Nominal
Size

Product
Part #

Wall Thickness

Standard Spool
Put-Ups

Colors

Lbs/
100'

Bulk

Box A

Box B

1/8"
1/4"
3/8"
1/2"
3/4"
1"
1 1/4"
1 1/2"
2"

F6N0.13
F6N0.25
F6N0.38
F6N0.50
F6N0.75
F6N1.00
F6N1.25
F6N1.50
F6N2.00

.024"
.025"
.025"
.025"
.025"
.038"
.038"
.038"
.038"

10,000'
3,000'
1,500'
1,200'
500'
400'
250'
250'
200'

400'
200'
150'
150'
100'
100'
75'
75'
50'

100'
100'
75'
75'
50'
50'
25'
25'
25'

4
4
4
4
4
4
4
4
4

0.20
0.60
1.20
1.40
1.60
2.00
2.40
2.70
3.60
