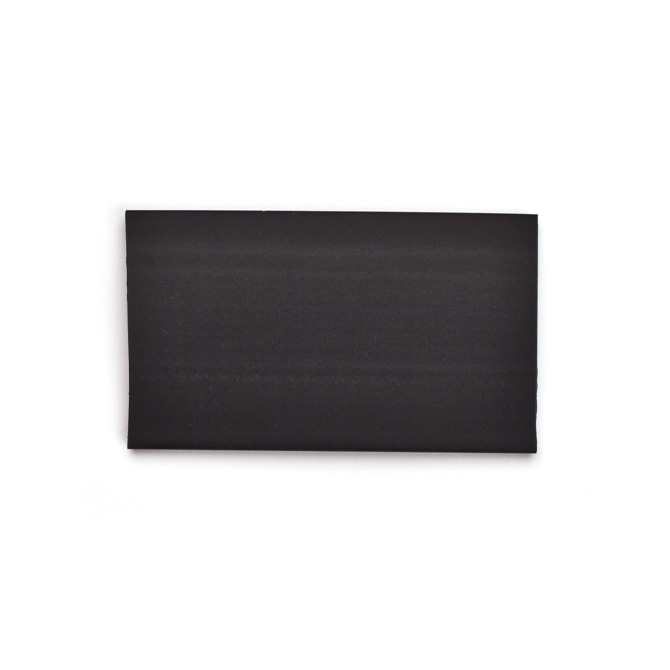

General Purpose - Flexible, 2:1 Ratio - Spooled

Technical Date: Physical

Property

Test Method

Typical Performance

Tensile Strength(Mpa)

ASTM D2671

10.4MPa

Elongation(%)

ASTM D2671

200%

Tensile Strength after Heat aging

UL224 158℃ X168hrs

≥7.3

Elongation after aging(%)

UL224 158ºċ X168hrs

≥100

Heat shock

UL224 225ºċ X4hrs

No dripping

No cracking

Electrical

Property

Test Method

Typical Performance

Dielectric Strength

IEC 243

≥15kv/mm

Volume Resistivity

IEC 93

≥1×10¹⁴Ω·㎝

Chemical

Property

Test Method

Typical Performance

Corrosion Action

UL224 158℃

PASS

X168hrs

Copper Compatibility

UL224 158℃

PASS

X168hrs

Dimensions

Size

As supplied

After Recovery(mm)

Standard Package

Inch

mm

Internal diameter(mm)

Internal diameterMax(mm)

Wall thicknessNom(mm)

Spool Length

m/spool

3/16

0.8

1.1±0.2

0.5

0.22

200

1/16

1

1.5±0.2

0.65

0.28

200

1.5

2.0±0.2

0.85

0.32

200

3/32

2

2.5±0.2

1

0.35

200

2.5

3.0±0.2

1.3

0.38

200

1/8

3

3.5±0.2

1.5

0.4

200

3.5

4.0±0.2

1.8

0.42

200

4

4.5±0.2

2

0.45

200

3/16

4.5

5.0±0.2

2.3

0.5

200

5

5.5±0.2

2.5

0.55

100

1/4

6

6.5±0.2

3

0.55

100

5/16

7

7.5±0.3

3.5

0.55

100

8

8.5±0.3

4

0.6

100

3/8

9

9.5±0.3

4.5

0.6

100

10

10.5±0.3

5

0.6

100

11

11.5±0.3

5.5

0.6

100

1/2

12

12.5±0.3

6

0.6

100

13

13.5±0.3

6.5

0.65

100

14

14.5±0.3

7

0.65

100

5/8

15

15.5±0.4

7.5

0.7

100

16

16.5±0.4

8

0.7

100

17

17.5±0.4

8.5

0.7

100

3/4

18

19.0±0.5

9

0.8

100

20

21.0±0.5

10

0.8

100

22

23.0±0.5

11

0.8

100

1

25

26.0±0.5

12.5

0.9

50

28

29.0±0.5

14

0.9

50

1-1/4

30

31.5±1.0

15

0.95

50

35

36.5±1.0

17.5

1

50

1-1/2

40

41.5±1.0

20

1

50

45

46.5±1.0

22.5

1

25

2

50

≥50

25

1

25

60

≥60

31

1.3

25

70

≥70

36

1.3

25

3

80

≥80

41

1.46

25

90

≥90

46

1.46

25

4

100

≥100

51

1.46

25

5

120

≥120

61

1.56

25

6

150

≥150

76

1.56

25

7

180

≥180

91

1.56

25
