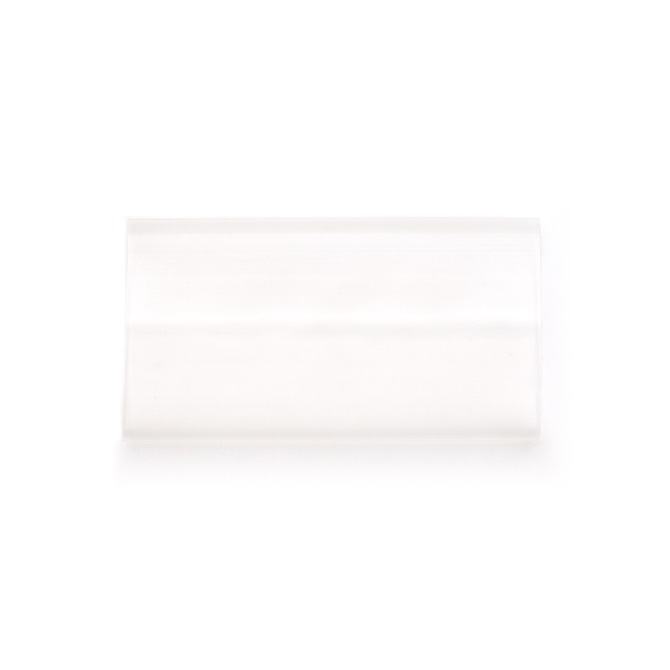

General Purpose Glue - Semi-Flexible, 3:1 Ratio - Spooled

  • Category: Heat Shrink Tubing
  • Brand: General Purpose

General Purpose glue lined tubing - only sold by the full spool

3:1 ratio

Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing



Adhesive lined heat shrink tubing with environmental sealing
capability for a wide variety of
electrical applications, including automotive and marine wire
harness, wire splices, breakouts, and connector-tocable
transitions.

Features
1.3:1 shrink ratio
2.Longitudinal shrink ratio: ≤+8%
3.Out jacket flame retardant, inner adhesive self-extinguished
4.Super sealing against water, moisture or other contaminants
5.Continuous operating temperature: -55℃~ 125℃
6.Shrink temperature: 120℃



Technical Data:





Test Item

Test Method

Test Result

Tensile Strength(Mpa)

ASTM D2671

≥10.4

Elongation%

ASTM D2671

≥300

Tensile Strength afterAging   (Mpa)

UL 224 158×168hr

≥7.3

Elongation after Aging%

UL 224 158℃×168hr

≥200

Dielectric Strength

IEC 243

≥ 15

Volume Resistance(Ω.cm)

ASTM D876

≥ 1014Ω.cm







Hot Melting Adhesive Property





Test Item

Test Method

Test Result

Water absorption ratio:

ASTM-D570

<0.2%

Softing point

ASTM-E8

95℃

Strength of pearing(PE)

ASTM-D1000

120N/25m

Strength of pearing(AL)

ASTM-D1000

80N/25m



Dimensions













Size

As supplied

After recovery （mm）

Standard Package

Inch

mm

Internal Diameter（mm）

Inertnal Diameter

Total Wall Thickness

Wall Thickness of Adhesive

m/spool

1/8

3.2

3.2

1

0.90±0.15

0.35±0.10

200

3/16

4.8

4.8

1.6

1.00±0.15

0.40±0.10

100

1/4

6.4

6.4

2.2

1.25±0.15

0.45±0.12

100

5/16

7.9

7.9

2.7

1.30±0.15

0.50±0.12

100

3/8

9.5

9.5

3.2

1.40±0.15

0.50±0.12

50

1/2

12.7

12.7

4.2

1.70±0.15

0.50±0.12

36.6

5/8

15

15

5.2

1.80±0.15

0.55±0.15

30.5

3/4

19.1

19.1

6.3

1.95±0.15

0.55±0.15

30.5

1

25.4

25.4

8.5

2.05±0.20

0.55±0.15

30.5

1-1/4

30

30

10.2

2.20±0.20

0.60±0.15

24.4

1-1/2

39

39

13.5

2.50±0.20

0.60±0.15

18.3

2

50

50

17

2.80±0.25

0.70±0.15

12.2

2.5

64

64

21

3.00±0.25

0.70±0.15

6.1

3

75

75

25

3.00±0.30

1.00±0.20

1.22

3.-1/2

90

90

30

3.00±0.30

1.00±0.20

1.22

4

100

100

34

3.00±0.30

1.00±0.20

1.22

5

125

125

42

3.00±0.30

1.00±0.20

1.22
